| ブランド名: | Cablein |
| MOQ: | 100PCS |
| 価格: | The price ranges from $1 to $4 USD per pieces |
| パッケージの詳細: | High Quality export carton |
| 支払条件: | T/T,Western Union |
| Attribute | Value |
|---|---|

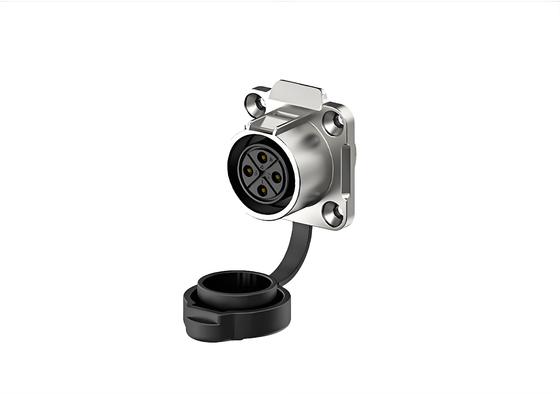

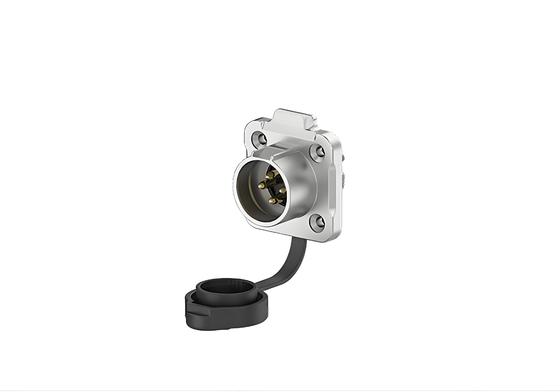

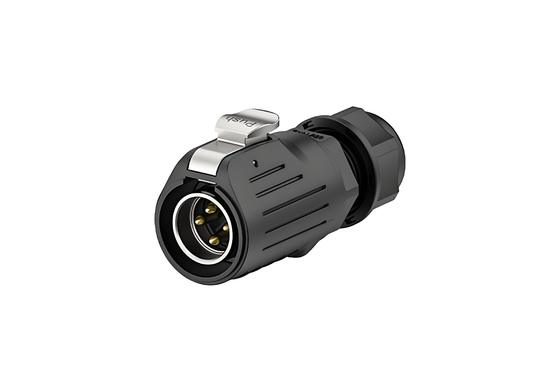

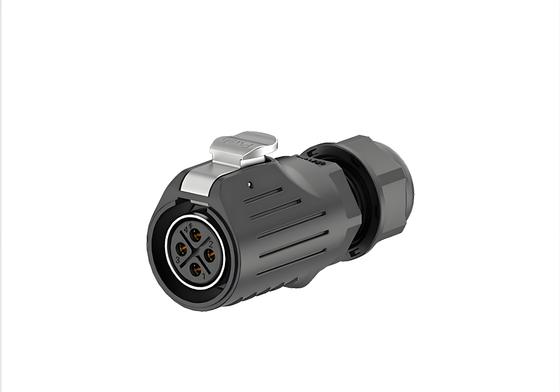

| Name | LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector |
| Corrosion Resistance | High Corrosion Resistance |
| Flame Resistance | UL94 V-0 |
| Waterproof | IP68/IP67 |
| Dustproof | 100% Dustproof |
| Withstand Temperature | -40℃~+80℃ |
| Metal | Gilded brass |
| Material | Metal + Plastic |
| Pins Number | 2Pins | 3Pins | 4Pins | 5Pins | 7Pins | 9Pins | 12Pins |
|---|---|---|---|---|---|---|---|
| Rated Voltage | 500V | 250V | ||||||
| Rated Current | 20A | 10A | 5A | ||||
| Insulation voltage | 2.5KV | 1.5KV | |||||
| IP CODE | IP68 | ||||||
| Cable Jacket OD | Standard Power: ⌀8-12mm Standard Signal: ⌀5-6.5mm Other: ⌀5-9mm | ||||||
| Assembly cable diameter | 2.4-4mm²/14-12AWG | 1-1.5mm²/18-16AWG | 0.34-0.75mm²/22-20AWG | ||||||
| Ambient temperature | -40℃~+80℃ | ||||||
Locking Operation: The cable is secured by rotating or pressing the connector's latch mechanism (specific method varies by model) to prevent loosening in high-vibration environments.
Mating/Unmating Performance: Quick plugging/unplugging is supported, but the locking mechanism must be disengaged first to avoid interface damage.
Yes, we support the following customizations:
|
|
