P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring

ブランド名:	Cablein
MOQ:	100pcs
価格:	The price ranges from $1 to $4 USD per pieces
パッケージの詳細:	高品質の輸出カートン
支払条件:	T/T、ウェスタンユニオン

詳細情報

製品の説明

詳細情報

起源の場所:

中国深セン

証明:

CE, ROHS, TUV , ETL

火炎抵抗の評価:

UL94 V-0

1-to-2 Ports Waterproof Through Connector

UL94 V-0 Flame Resistance Circular Connector

450V Rated P20X Connector

製品の説明

Waterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring

The Waterproof Through Connector P20X features a 2-pole, 1-to-2 port design with tool-free fast wiring for efficient electrical connections in demanding environments.

Specifications

Installation Type	Wire-to-Wire
Connection Type	Quick Connect
Rating	IP68
Pin	2
Waterproof Ring	5-9mm 9-12mm
Applicable Wire Gauge	0.5mm²-2.5mm²
Material	PA66

Technical Parameters

Product Name	Waterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring
Wiring Range	0.5 - 2.5 mm²
Rated Current	16A Max
Operating Voltage	450V Max
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm

Key Advantages

Tool-Free Fast Wiring: Enables quick and effortless installation, significantly saving time and labor costs without the need for special tools.
IP68 Waterproof & Dustproof: Provides complete protection against dust and long-term water immersion, ensuring reliable performance in harsh outdoor and industrial environments.
Stable 1-to-2 Circuit Branching: The through-type design efficiently and securely distributes power or signals from one source to two devices, simplifying system layout.
Robust & Corrosion-Resistant: Built with high-quality materials, the connector withstands impact, vibration, and corrosion for long-term durability.

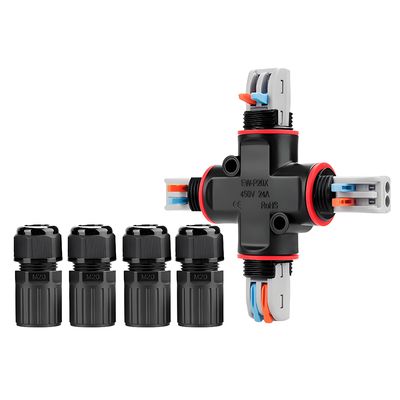

Product Images

Frequently Asked Questions

Q: Is special tooling required for wiring?

A: No. It features a tool-free design for quick and easy installation.

Q: What is the waterproof rating?

A: It is rated IP68, ensuring complete protection against dust and water immersion.

Q: How many devices can this connector power?

A: Its 1-to-2 port design allows you to power or connect two devices from a single source.
