| ブランド名: | Cablein |
| MOQ: | 100pcs |
| 価格: | The price ranges from $1 to $4 USD per pieces |
| パッケージの詳細: | 高品質の輸出カートン |
| 支払条件: | T/T、ウェスタンユニオン |
| Installation Type | Wire-to-Wire |
|---|---|
| Connection Type | Screw Locking |
| Rating | IP68 |
| Pin Configuration | 3-Pin |
| Waterproof Ring Sizes | 5-9mm, 9-12mm, 10-14mm |
| Applicable Wire Gauge | 1.5mm²-6mm² |
| Material | PA66 (Nylon) |
| Parameter | Specification |
|---|---|

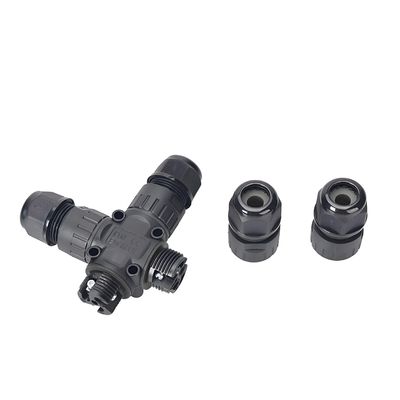

| Product Name | M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector |
| Wiring Range | 1.5mm² - 6 mm² |
| Rated Current | 41A |
| Operating Voltage | 450V |
| Ingress Protection (IP) Rating | IP67/IP68 |
| Ambient Temperature | -40℃ ~ +105℃ |
| Cable Diameter (OD) | 5-9mm, 9-12mm, 10-14mm |
Superior vibration resistance with screw locking mechanism ensures a tight, secure grip on cables, preventing loosening even under constant vibration or mechanical stress. Guarantees stable and reliable electrical connection with minimal downtime.
IP68 rated for complete protection against dust and water. Fully dust-tight and withstands continuous submersion, making it ideal for outdoor, marine, and industrial applications.
Effortless through-type wiring design simplifies the wiring process, allowing for quick and tool-efficient cable insertion and securing from one or both ends, reducing installation time and labor costs.
Constructed from premium PA66 (Nylon) and high-grade seals, this connector resists corrosion, UV exposure, and chemical degradation, ensuring long service life in harsh conditions.
|
|
| ブランド名: | Cablein |
| MOQ: | 100pcs |
| 価格: | The price ranges from $1 to $4 USD per pieces |
| パッケージの詳細: | 高品質の輸出カートン |
| 支払条件: | T/T、ウェスタンユニオン |
| Installation Type | Wire-to-Wire |
|---|---|
| Connection Type | Screw Locking |
| Rating | IP68 |
| Pin Configuration | 3-Pin |
| Waterproof Ring Sizes | 5-9mm, 9-12mm, 10-14mm |
| Applicable Wire Gauge | 1.5mm²-6mm² |
| Material | PA66 (Nylon) |
| Parameter | Specification |
|---|---|
| Product Name | M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector |
| Wiring Range | 1.5mm² - 6 mm² |
| Rated Current | 41A |
| Operating Voltage | 450V |
| Ingress Protection (IP) Rating | IP67/IP68 |
| Ambient Temperature | -40℃ ~ +105℃ |
| Cable Diameter (OD) | 5-9mm, 9-12mm, 10-14mm |
Superior vibration resistance with screw locking mechanism ensures a tight, secure grip on cables, preventing loosening even under constant vibration or mechanical stress. Guarantees stable and reliable electrical connection with minimal downtime.
IP68 rated for complete protection against dust and water. Fully dust-tight and withstands continuous submersion, making it ideal for outdoor, marine, and industrial applications.
Effortless through-type wiring design simplifies the wiring process, allowing for quick and tool-efficient cable insertion and securing from one or both ends, reducing installation time and labor costs.
Constructed from premium PA66 (Nylon) and high-grade seals, this connector resists corrosion, UV exposure, and chemical degradation, ensuring long service life in harsh conditions.
